HDC RESEARCH / ISSUE 005 2025—26
Not a gear ranking.
Not another marketing story.
An anatomy of the modern hockey stick.
THE STICK IS NOT
THE GRAPHIC.
It is a composite beam, a handle, a tapered load path, a blade built around a core, a dynamic system between two hands and a puck. A flex number is a starting point, not a complete description.
01 / THE LOAD LAB INTERACTIVE STUDY
The real stick photograph stays real. The deformation changes. Move the loading controls to examine how a hypothetical beam responds to force, relative stiffness, and lever arm. This is a visual mechanics demonstration—not a measurement of Bauer's proprietary layup.
Bauer Nexus Tracer Senior. The selected flex is a listed retail variant; the bent image is deliberately an explanatory simulation.
Add load to compare deformation against the undeformed manufacturer photograph.
A real manufacturer product-expert conversation, provided for component identification. Its performance claims remain the manufacturer's claims, not independent Hockey Detox test results.
Sticks are built from fibers, resin, geometry and a blade core. A manufacturer diagram can tell us what technology the brand describes. It cannot prove a specific proprietary ply schedule.
Manufacturer illustration of blade technology. Not an independently verified destructive cross-section or materials laboratory photograph.
TRUE's published blade and laminate technology descriptions. This is manufacturer artwork, not proof of a 2026 model's exact internal layup.
Carbon fibers carry load principally along their orientation. Different layups can trade longitudinal bending, torsion and local impact resistance. A label like 18K or UD does not independently disclose the full layup schedule.
A toe curve, blade rocker and lie are not interchangeable descriptions. Inspect a real blade photograph at high magnification to see why contact geometry deserves its own examination.
Left/right deviation of the blade face; nominal retail pattern labels do not measure exact curvature.
Bottom-edge shape changes how much of the sole contacts the ice across blade orientation.
Nominal shaft-to-blade geometry, affected in practice by grip, stick length and posture.
Save. Seal. Pass. A goaltender's paddle, shoulder, shaft and blade are working components, not decoration. Evaluate them with the blocker, skates and pads actually on.
A goalie stick is a different mechanical system: the paddle blocks, the shoulder transfers load, the blade seals and clears, and the shaft must move with the blocker. Each part deserves its own scrutiny.

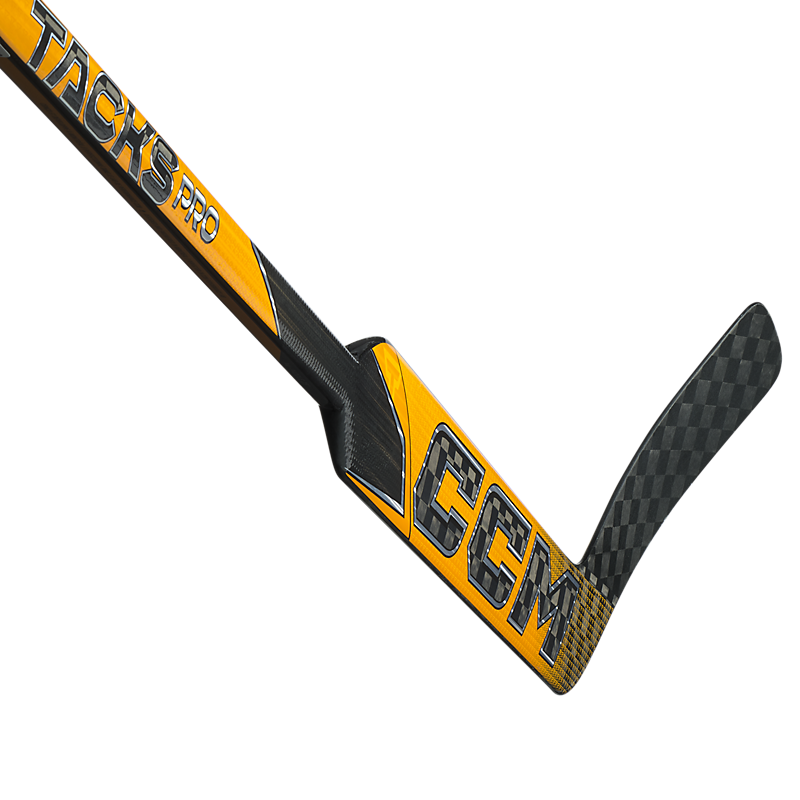

The blocker hand and lower-hand position act on a shaft whose geometry and taper affect how it loads. CCM publishes an ALUPLI aluminum-and-carbon shaft for this senior Tacks Pro. That does not establish its measured flexural-rigidity curve.
Four manufacturer-described goalie-stick construction approaches. Select a manufacturer to inspect what is documented and what is not—without inventing a single numerical performance ranking.

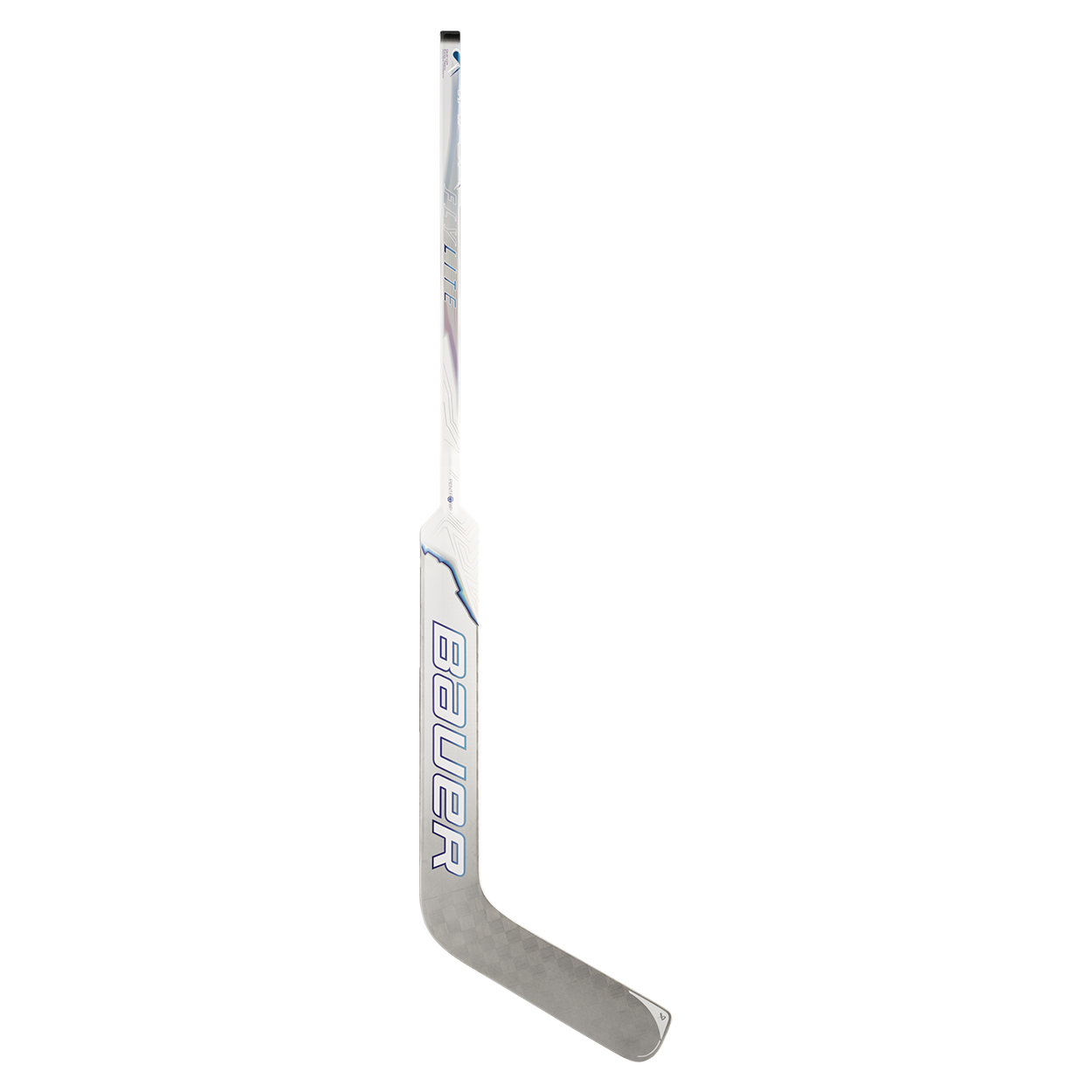

Bauer describes the senior 2025 FLYLITE goalie stick with XE taper, AIRMax/QuadAIR paddle, PentaGrip shoulder and hybrid toe.
Paddle and tapered-shaft geometry affect mass, grip and blade handling. Published manufacturer claims are not universal passing-performance measurements.
There is no comparable independent longitudinal EI curve or controlled passing-speed measurement.
Test in full equipment. Change the movement and record what you actually observe; the checklist adjusts to the task. This doesn't generate a universal paddle-size recommendation from height or age.
Keep the goalie naturally set in full equipment. Check sole contact, blocker-hand location, wrist alignment and whether any posture is being forced simply to keep the blade down.
Complete each observation in full equipment. All boxes start unverified—not failed.
Age grade is a product category, not a material specification. The exact model generation, size, hand and source must be checked independently.
CCM's official catalog identifies Phenom Youth separately from Junior. That proves the grade exists; it does not establish the correct paddle, composition or fit for a particular child. Evaluate the exact SKU and blade-ice seal in full equipment.
CHECK OFFICIAL GRADE SOURCEBelow: primary-source goalie technology footage and an additional paddle-size context station. Your player and goalie engineering have independent research paths—not a winner and a footnote.
Bauer describes an AIRMax/QuadAIR paddle, PentaGrip shoulder and hybrid toe on the 2025 FLYLITE goal stick. A technology list is not a fit prescription for a particular goalie.
VERIFY COMPONENTS AT BAUERChoose a manufacturer-listed nominal paddle option, then change the goalie movement. The guidance updates. Actual post seal, blocker position and puck contact must be evaluated on the ice.
Individual grades matter. A junior FT8 Pro is not automatically built from every component named in the senior FT8 Pro. Filter maker and role; open documented source records. No invented shot-speed charts or cross-brand scores.
Product records include maker-published construction claims and directly linked models. Where a grade-specific detail is missing, it remains missing.
Loading official manufacturer records…
SOURCE FILE / SELECT MODEL
Select a model from the list to inspect its published construction details.
This material is a technical interpretation, not a performance ranking.
No unverifiable claims about shot speed, proprietary fiber stacks or repair integrity.
Don't tell a buyer what is inside a stick because a shaft wears a famous graphic. Document where it came from, identify the object, and disclose every modification.
A verbal story or an athlete's name printed on a shaft is not independent team-issue verification.
NEXT REQUIRED EVIDENCEObtain traceable acquisition records, clear product-code photos and full size, curve and condition measurements.
Two sticks can list the same mass and feel different because their mass sits in different places. A broken shaft or blade can be repaired, but reconstructed fibers cannot simply be assumed identical to the original factory layup.
Inspect for cracks, delamination and soft spots near the heel/shaft transition. Cosmetics cannot establish internal condition.
Section geometry and local stiffness change across the taper. A repaired section must be disclosed with its location and process.
A repaired or custom stick may carry different warranty terms. Separate original manufacturer coverage from any independent service warranty.
